Hamilton PCB Design (Keith Hamilton) has been operating in the NC area since the 1980's.
     I have satisfied customers in the area and all over the country. I take pride in doing the job right
     and doing the best job I can for the customer. I not only can use Pads Power Mentor or Altium Designer
     to design your PCB Board, I can help with other light engineering duties as well.

     Schematic capture
    Component procurement
    BOM management
    Light Electronics Design (see examples)
    Electronics design using PIC controller
    PIC software
    Test and Troubleshooting

    I can help with your product or idea. Using my electronics background (electronics engineering degree)
   I can work with your company to achieve the best design. If your project demands additional resouces,
   I also work with some of the best design engineers and assembly manufacturers in the area

    I can also work with your company to help solve manufacturing problems.

   I specialize in RF and analog boards, and HDI boards with blind and buried vias.

---

     (919)362-9393

     Key Benefits

   §  30 years in the PCB industry

   §  Electronics Engineering Degree

   §  Honest Dependable Service

   §  PADS (Mentor) Software

   §  Altium Designer Software

       Hamilton PCB Design has done work for many companies including:

	Sanders RF	Kidde
	Fairchild	Raytheon
	MTS Sensors	Renesas
	Andrew	Sierra Wireless
	Iridium	Kurzweil
	Northern Telecom	IBM
	Flextronics	Ericsson
	GE	Analog Devices

---





           Iridium announces the world's smallest two-way satellite data
           transceiver, the Iridium 9603, extending the ways that people
           and assets can connect everywhere.

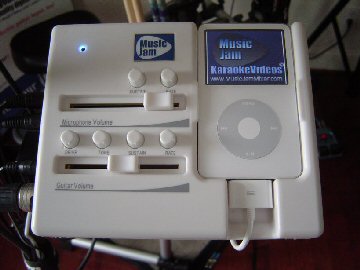

"MusicJam", an IPod accessory. A product we took
         from conception to final product design with the help of Triangle Digicom.
         This picture is one of the first samples from China.




       We did the PCB design of the electronics for this toy pictured below
       it was made in China.



    We not only do Printed circuit board design but can help with product conception to the finished product.
    We have an electronics shop and can build and troubleshoot small quantities of boards on site.

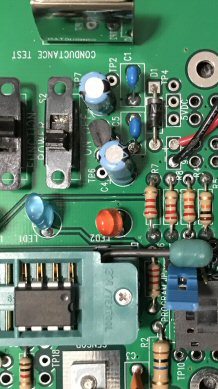

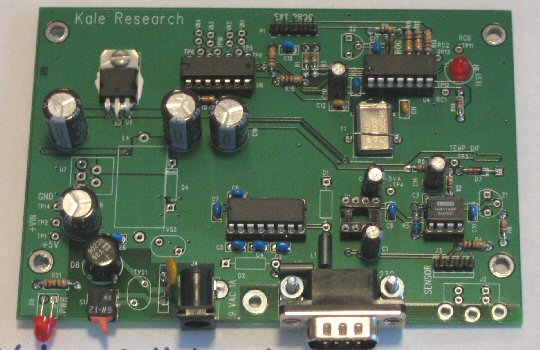

    Below are a couple of examples of prototypes we have put together here.







       Link to Raytheon Comments (PDF)

       Our history with Kurzweil Music

       Duke University Maestro AIO_DIO Interface

       For further information Please E-mail: Keith@Hampcb.com

       Satisfaction Warranty

      Our goal is 100% design perfection. If at any time we make an error we will correct the
      error and provide new files at no charge. Customer agrees to limit the manufacture of new
      board designs to minimum quantities of prototypes until such time that functional test results
      prove the design acceptable for quantity production Our liability is limited to replacement of
      manufacturing files and documentation drawing.
